200PG (T da 0 a +4°C)

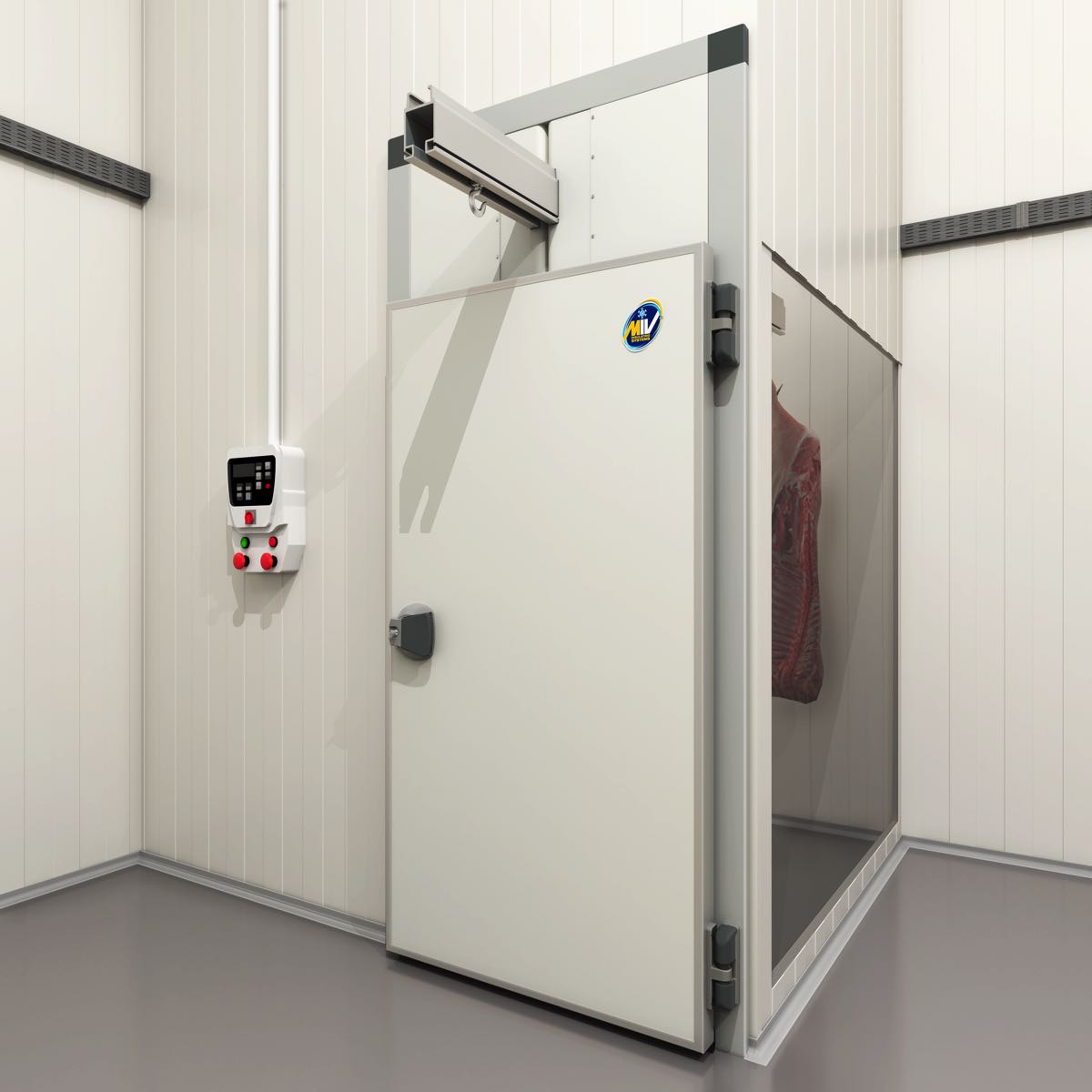

This type of door can be used to divide meat processing rooms and allow the passage of the slaughtered halves
60mm Door Leaf
Indoor installation
L-shaped Embracing Frame
STANDARD CONSTRUCTION
Hinged door for internal aplication in positive temperature rooms
Installation on panel or masonry wall
60mm or 70mm thick aluminum door leaf
Internal and external coating in white plasticoated metalsheet (Stainless steel coating available as optional)

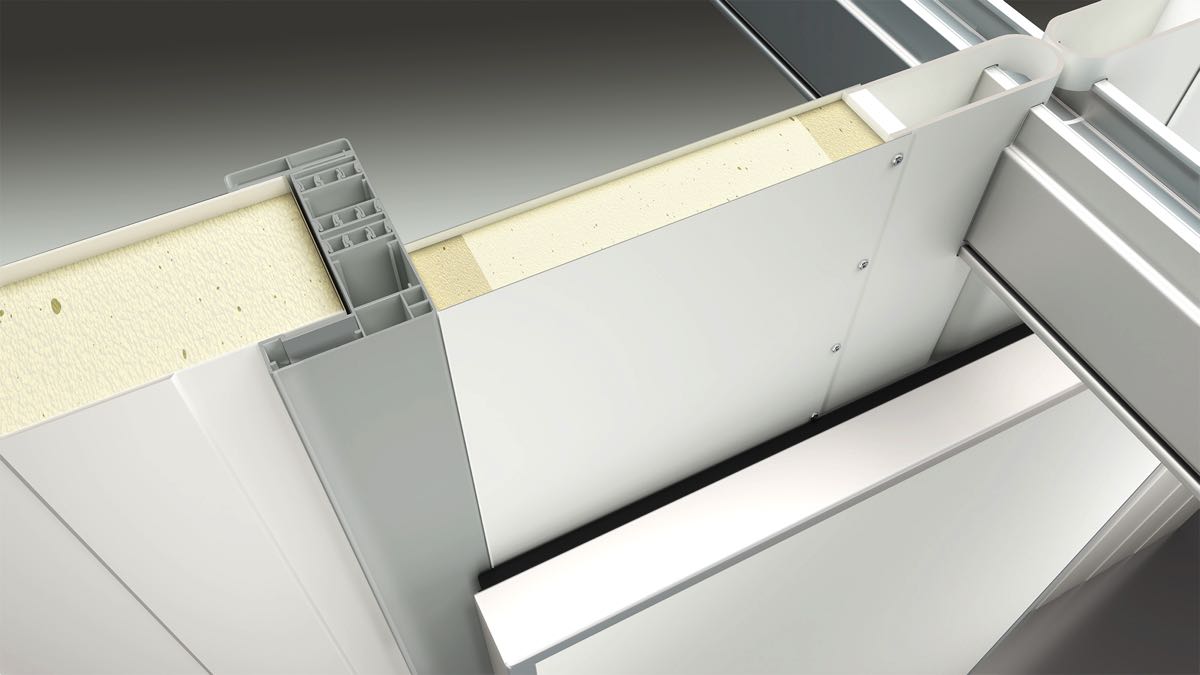

Door leaf injected with polyurethane foam “PUR” CFC free 40-42 Kg/cu.mtr density
Upper compartment in rubber to allow the passage of the rail
Lower and perimetral EPDM gasket

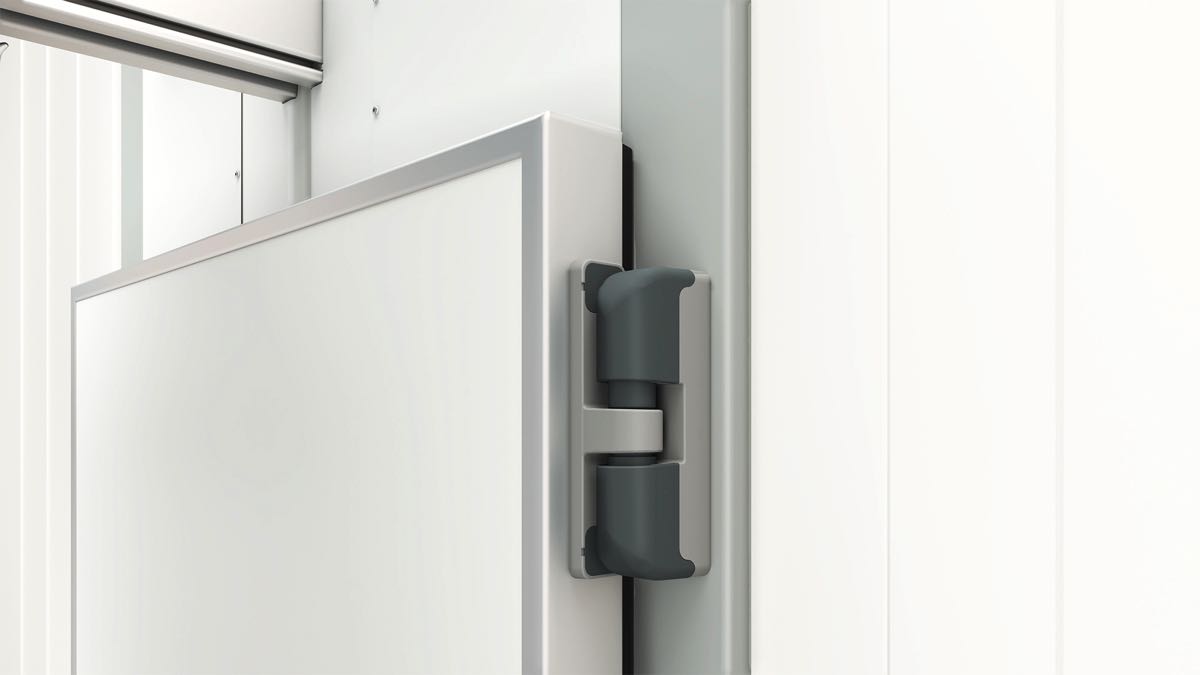

Original MIV design front hinges with adjustable ramp made of composite material

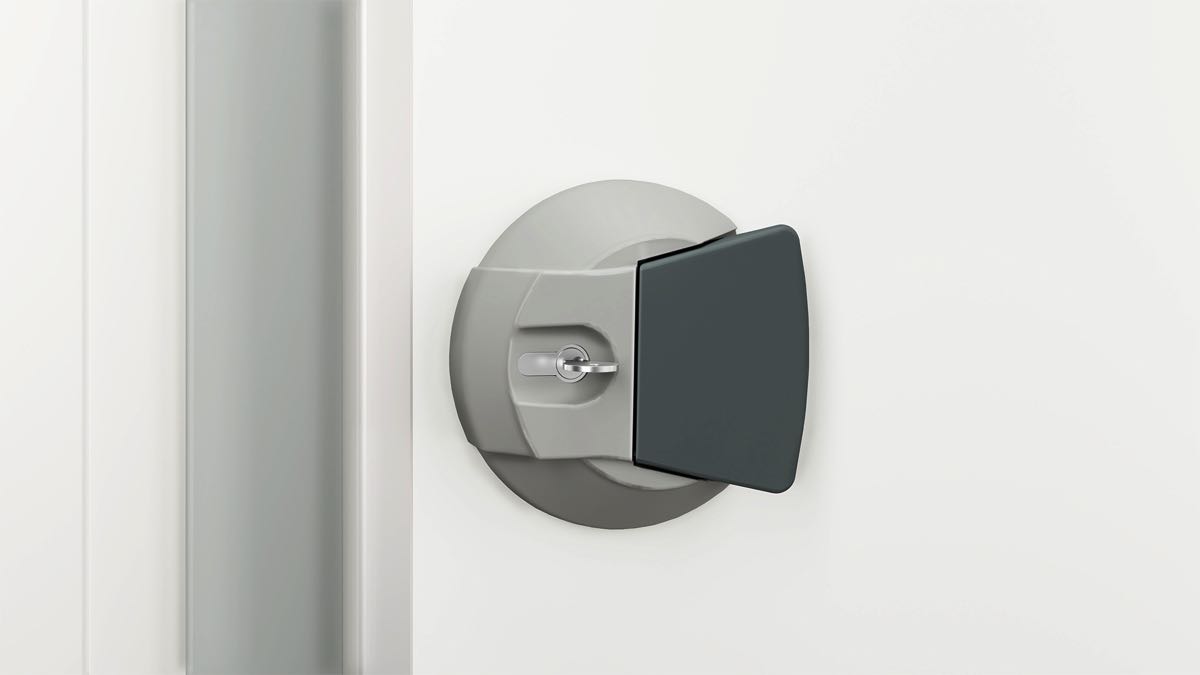

Original MIV design handle with key lock and push button safety opening

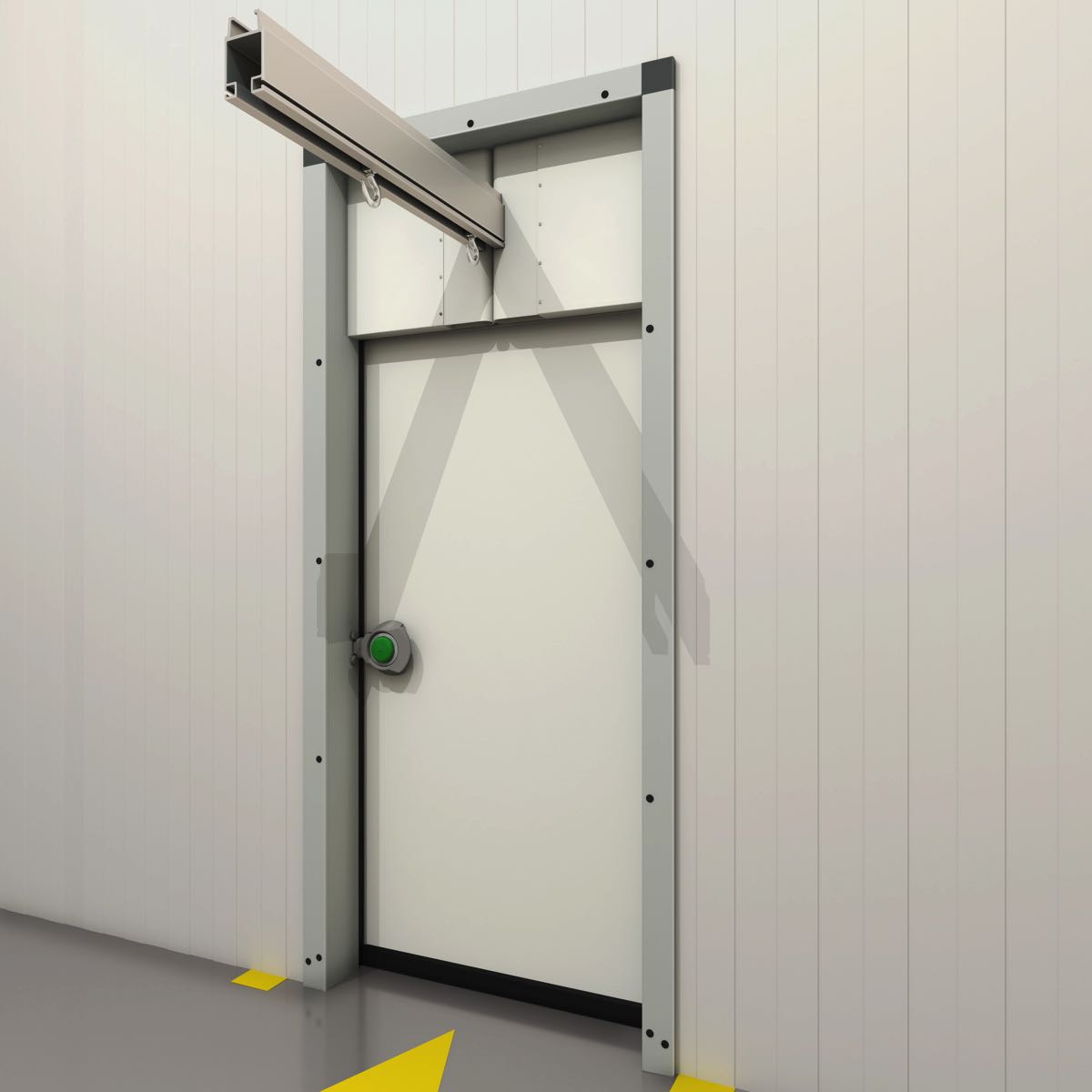

“L” shape PVC frame (mm 100 length) with additional modules to reach the thickness of the panel. PVC counterframe for wall installation upper opening to allow the passage of the guideway track (variant with aluminum frame)
Without threshold (Variant with step/thickness doorsill )
