800MI (FROM 0 TO +4°C) FLAT ALUMINUM FRAME

800MI (T from 0 to +4°C)

INDUSTRIAL REFRIGERATOR DOOR FOR POSITIVE TEMPERATURE

This industrial door can be applied in large storage, refrigeration and distribution warehouses. Used to separate rooms or to keep a constant temperature. Particularly robust for heavy industrial use, suitable for large dimensions.

90mm Door Leaf
Indoor Installation
Flat Frame
STANDARD CONSTRUCTION

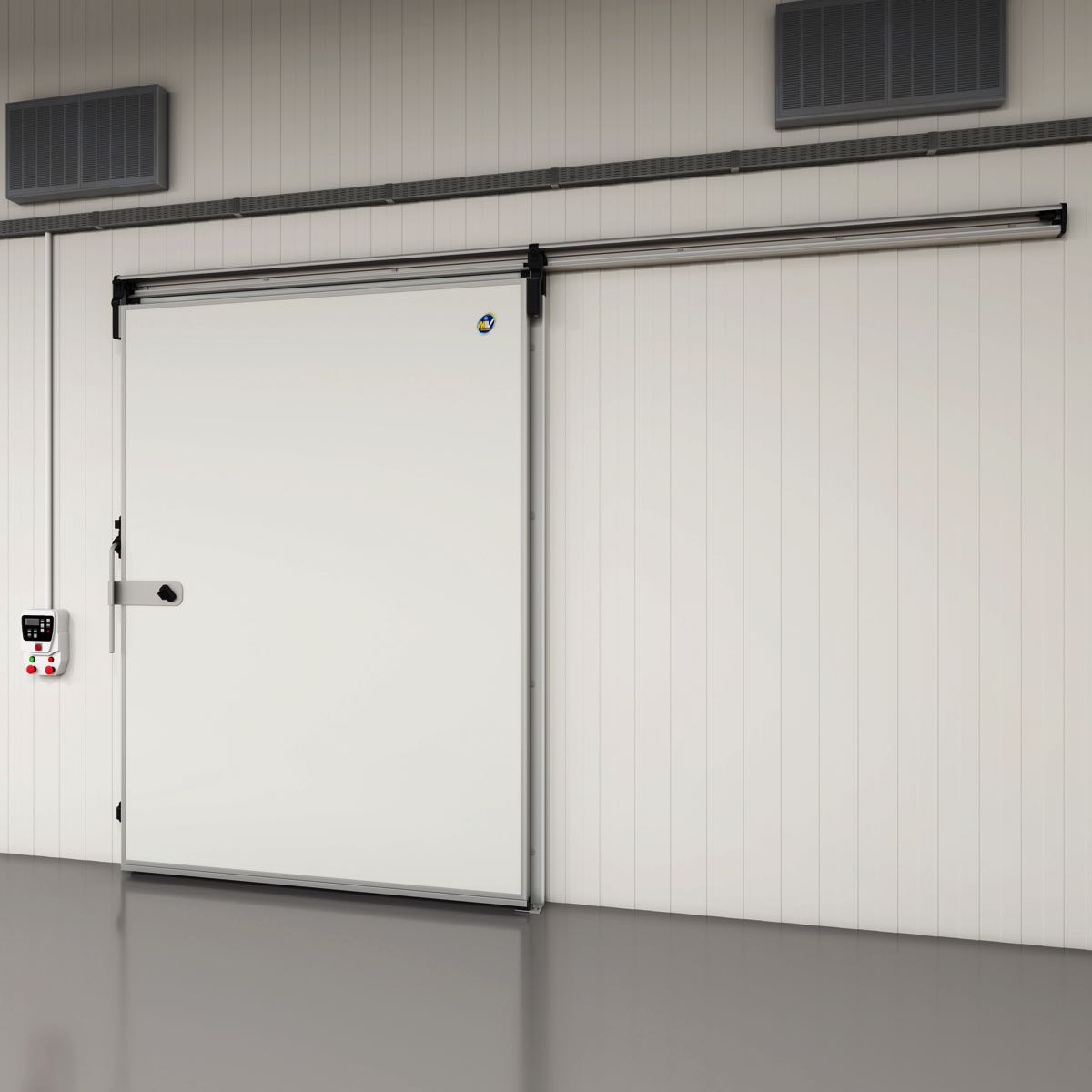

Sliding door for internal aplication in positive temperature rooms

Installation on panel or masonry wall

90 mm thick aluminum door leaf

Internal and external coating in white plasticoated metalsheet (Stainless steel coating available as optional)

Door leaf injected with polyurethane foam “PUR” CFC free 40-42 Kg/cu.mtr density

Lower and perimetral EPDM gasket (increased dimension)

Door leaf supported by brackets and pulleys (made of technopolymer) with increased diameter wheels and sliding on anodized aluminum guide rail (with rail cover)

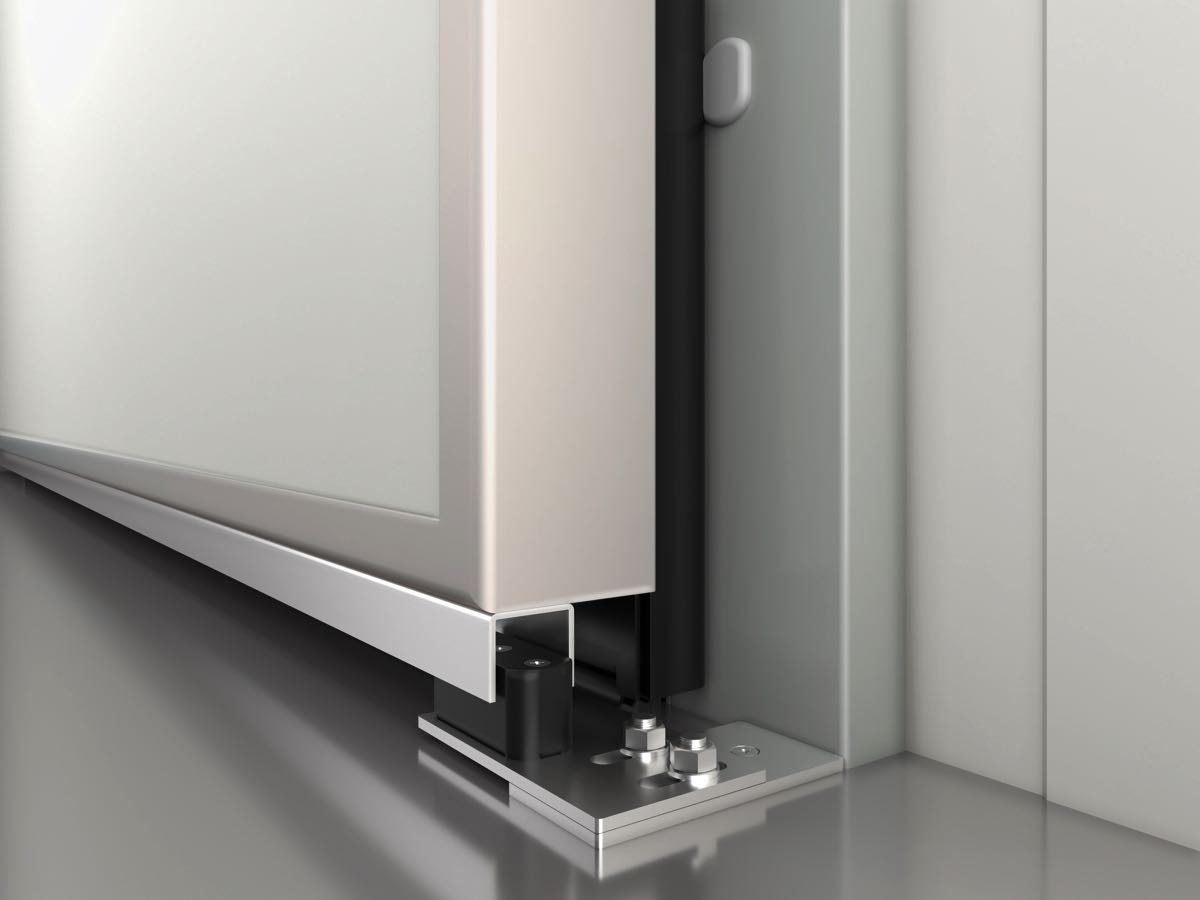

Lower guide made of stainless steel with floor register (floor mounted)

“Heavy Duty” sliding system suitable for large-sized doors

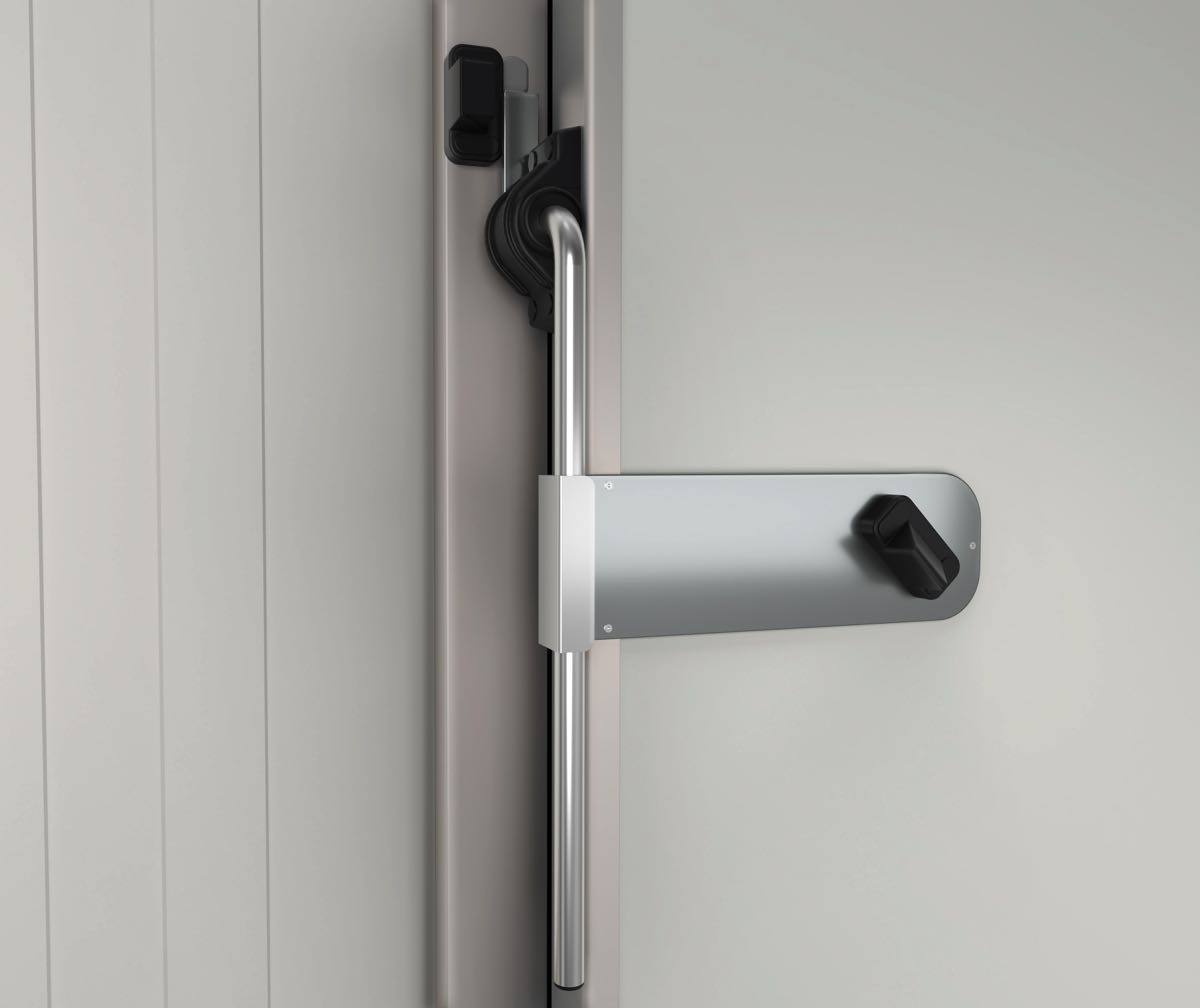

Original MIV design internal and external lever handle with special anti-breaking stop

Front fixing flat aluminum frame (length 140 mm x thick 45 mm) (Variant: stainless steel/pvc and metal connecting sheet)

Without threshold (Variant with floor level doorsill )

OPTIONALS

Automation system

Original MIV design lock

EXPLODED DRAWING
