Home Door components Internal Frame Type Office and To and Fro Mod. 2010 Cop 60/90 06AL20230
Internal Frame Type Office and To and Fro Mod. 2010 Cop 91/120 06AL20229
Back to products
Door leaf profile for panel To and Fro 06AL20251

Internal Frame Type Office and To and Fro Mod. 2010 Cop 60/90 06AL20230

06AL20230

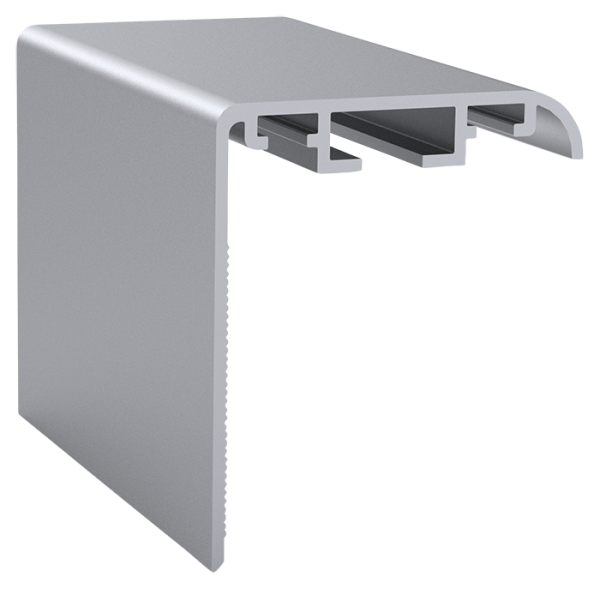

Profile in silver anodized aluminum alloy 6060 T6, used for the construction of the frame for the “Type Office and To and Fro” model, equipped with an adjustment system by assembling with the profile “06AL20228” for the “Type Office” model, or “06AL20227” for the “To and Fro” model for complete management of the thicknesses that can vary from a minimum of 60 mm up to a maximum of 90 mm. It is supplied in 7 mt standard length bars.

Categories: Semi-insulating door components, Door components, Aluminium profiles for semi-insulating doors Tags: Office Type Door, To and Fro frame, Type Office frame, Aluminium profiles
Share:
  • Description
Description
DATA SHEET INTERNAL FRAME TYPE OFFICE AND TO AND FRO
