Home Doors SEMI-INSULATING DOOR To and Fro
Bordo battente Va e Vieni Mod. 2010
Door leaf profile for To and fro Mod.2010 06AL20231
Back to products
SEMI-INSULATING DOOR Type Office.

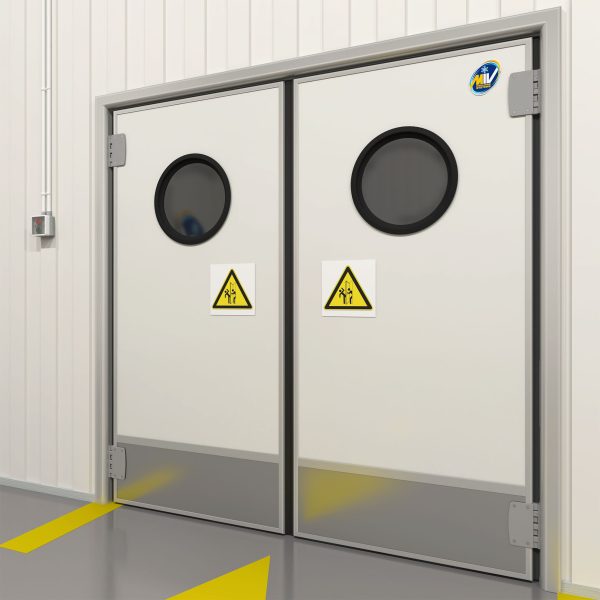

SEMI-INSULATING DOOR To and Fro

COMING AND TURNING (T without thermal Δ)

The door defined as “coming and going” is a “saloon”-type opening door that can be opened with a simple push, without a handle Employed to separate processing rooms from rooms with frequent transit of people and/or carts such as: kitchens, processing rooms, food and industrial environments.

Installation for Interior

Categories: Doors, Semi-insulated doors, To and Fro Door Tags: Semi-insulating door, Door Goes And Goes
Share:
  • Description
Description
  • Semi-insulating bidirectional hinged door, for internal application with positive temperature rooms
  • Installation on panel/masonry
  • Bidirectional opening with 90° block
  • 40mm aluminum sash edge
  • Internal and external coating in white plasticoated metalsheet (Stainless steel coating available as optional)
  • Door leaf injected with polyurethane foam “PUR” CFC free 40-42 Kg/cu.mtr density
  • Anti-shearing EPDM gaskets are applied on the leaf (vertical edges)
  • Anodized aluminum frame and counterframe for different thicknesses (from mm 60 to mm 90 and from mm 91 to mm 120)
  • Internal and external protection, h.300 mm, made of stainless steel
  • Transparent polycarbonate porthole 350mm diameter
  • Concealed frame fixing screws
  • Without threshold (Variant with floor level doorsill )

OPTIONAL

Bumper protections

TECHNICAL DATA SHEET.
EXPLODED VIEW DRAWING
