STANDARD CONSTRUCTION

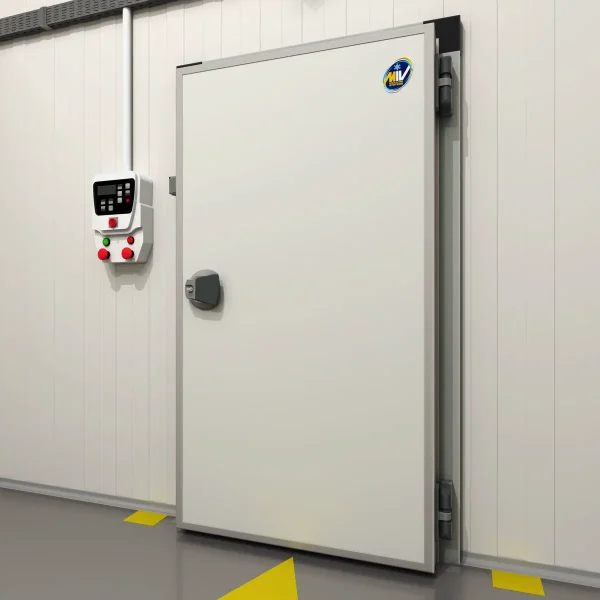

- Hinged door for internal aplication in negative temperature rooms
- Installation on panel or masonry wall
- 90mm or 120mm thick aluminum door leaf
- Internal and external coating in white plasticoated metalsheet (Stainless steel coating available as optional)
- Door leaf injected with polyurethane foam “PUR” CFC free 40-42 Kg/cu.mtr density
- Double lower and perimetral EPDM gasket. Heating cable applied inside the gaskets or inside the door frame

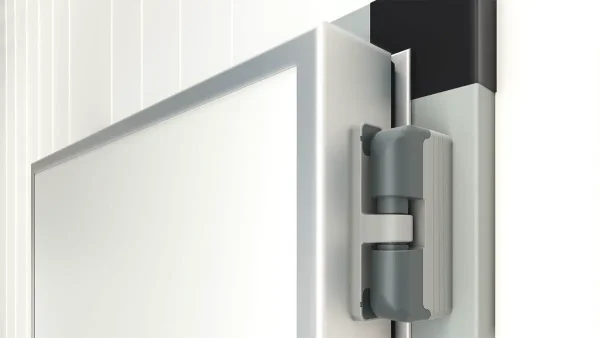

- Original MIV design front hinges with adjustable ramp made of composite material

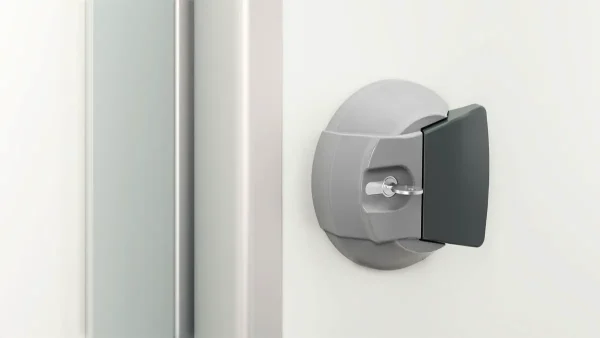

- Original MIV design handle with key lock and push button safety opening
- “L” shape PVC frame (mm 140 length) with semi-recessed frame stop and additional modules to reach the thickness of the panel. PVC counterframe for wall installation (Variant with aluminum frame and counterframe)
- Without threshold (Variant with angular aluminum doorsill ) (Variant with step/thickness doorsill )
