Home Doors Sliding doors for cold rooms LIGHT SLIDING INDUSTRIAL REFRIGERATION DOOR FOR POSITIVE TEMPERATURE 976-977P
INDUSTRIAL SLIDING REFRIGERATION FOR POSITIVE TEMPERATURE FOR LARGE DOORS 979M
Back to products
INDUSTRIAL SLIDING REFRIGERATION DOOR FOR POSITIVE TEMPERATURE WITH RAILWAY PASSAGE 900PG

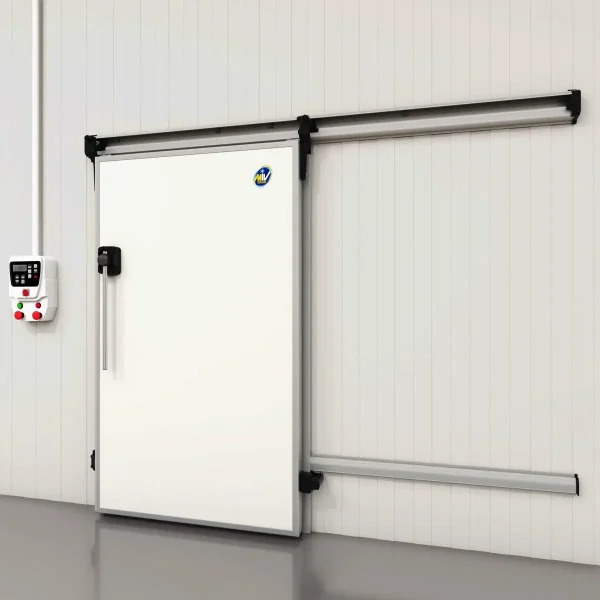

LIGHT SLIDING INDUSTRIAL REFRIGERATION DOOR FOR POSITIVE TEMPERATURE 976-977P

976-977P (T From 0 To +4°C)

This door model can be used in positive-temperature food processing and maturing rooms Especially in fruit and vegetable storage rooms, slaughterhouses, large cold stores.

Indoor Installation
L-shaped embracing frame

Categories: Doors, Positive temperature doors from 0 to +4°C Chiller, Panel application type, Sliding doors for cold rooms Tag: Sliding cold room doors
Share:
  • Description
Description
STANDARD CONSTRUCTION
  • Sliding door for internal aplication in positive temperature rooms
  • Installation on panel or masonry wall
  • 60mm or 70mm thick aluminum door leaf
  • Internal and external coating in white plasticoated metalsheet (Stainless steel coating available as optional)
  • Door leaf injected with polyurethane foam “PUR” CFC free 40-42 Kg/cu.mtr density
  • Lower and perimetral EPDM gasket
  • Door leaf supported by brackets and pulleys (made of technopolymer) and sliding on anodized aluminum guide rail (with rail cover)

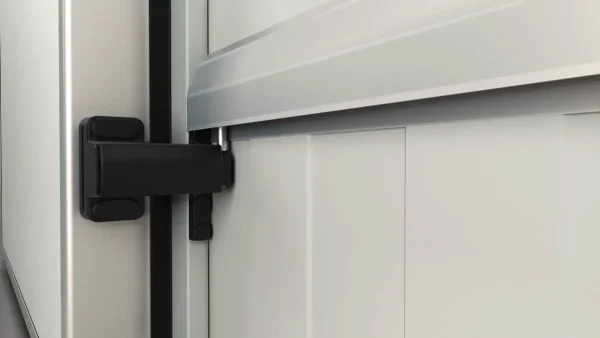

  • Lower guide made of anodized aluminum with technopolymer floor register (Variant with panel mounted guide)
  • Sliding system suitable for small and medium-sized doors

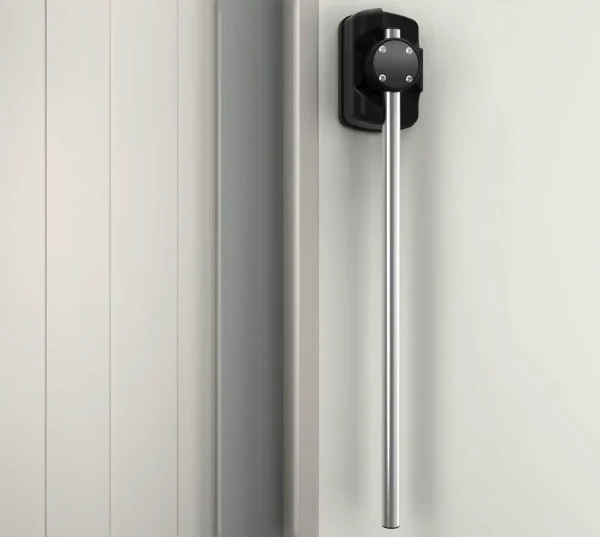

  • Original MIV design internal and external lever handle

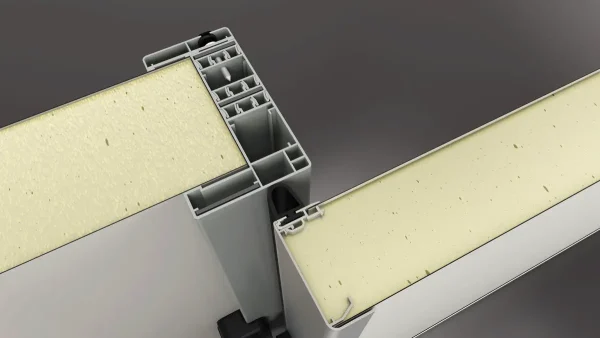

  • “L” shape PVC frame (100mm length and 25mm thick) with additional modules to reach the thickness of the panel. PVC counterframe for wall installation (Variant with aluminum frame and counterframe)
  • Without threshold (Variant with cold threshold)
  • Maximum net opening L.160 cm x H.250 cm

OPTIONAL

  • Original MIV design lock
TECHNICAL DATA SHEET.
EXPLODED DRAWING
