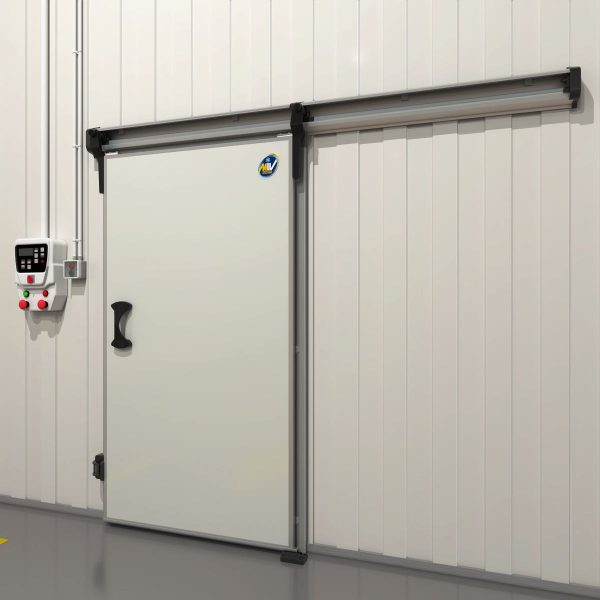

LIGHT SLIDING INDUSTRIAL REFRIGERATION DOOR FOR POSITIVE TEMPERATURE 974P

974P (T From 0 To +4°C)

Door intended for rooms with positive temperature, mainly used to divide working spaces

Indoor Installation
Flat Frame

Description

STANDARD CONSTRUCTION

Sliding door for internal aplication in positive temperature rooms
Installation on panel or masonry wall

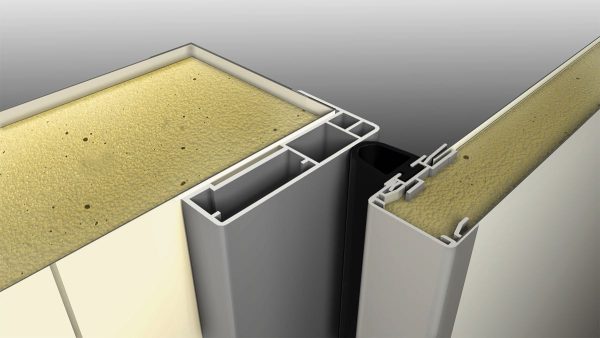

40mm or 60mm thick aluminum door leaf
Internal and external coating in white plasticoated metalsheet (Stainless steel coating available as optional)
Door leaf injected with polyurethane foam “PUR” CFC free 40-42 Kg/cu.mtr density
Lower and perimetral EPDM gasket
Door leaf supported by brackets and pulleys (made of technopolymer) with increased diameter wheels and sliding on anodized aluminum guide rail (with rail cover)

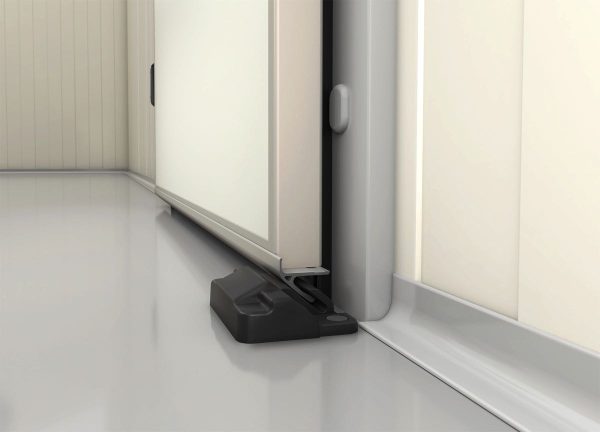

Lower guide made of anodized aluminum with technopolymer floor register (Variant with panel mounted guide)

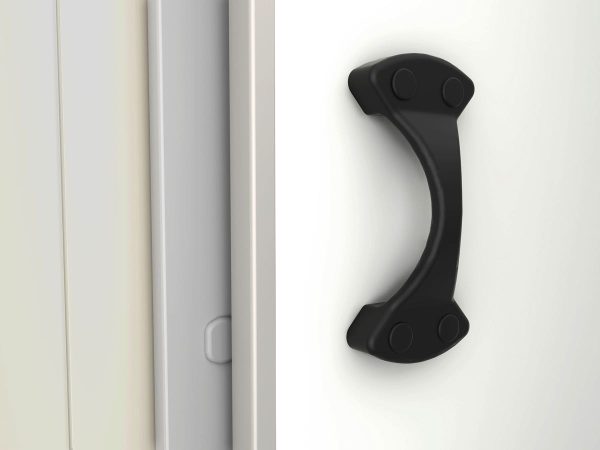

Original MIV design internal and external lever handle
Uncoated PVC flat frame (mm 100 length x 25mm thick) (Variant with connecting sheet)
Without threshold (Variant with floor level doorsill )
Maximum net opening L.160 cm x H.250 cm
